Aquanaut - Ultra Low Profile CPU/Pump Water Block
Custom Cooling for SFF
Aquanaut is an ultra low profile CPU/Pump water block optimized for space saving. It is well suited for small form factor (SFF) PC (sandwich style) cases. It mounts on top of the CPU serving as a CPU water block as well as a pump mount. It supports standard DDC (Laing compatible) pumps. The total height of Aquanaut is only 24mm (without pump).

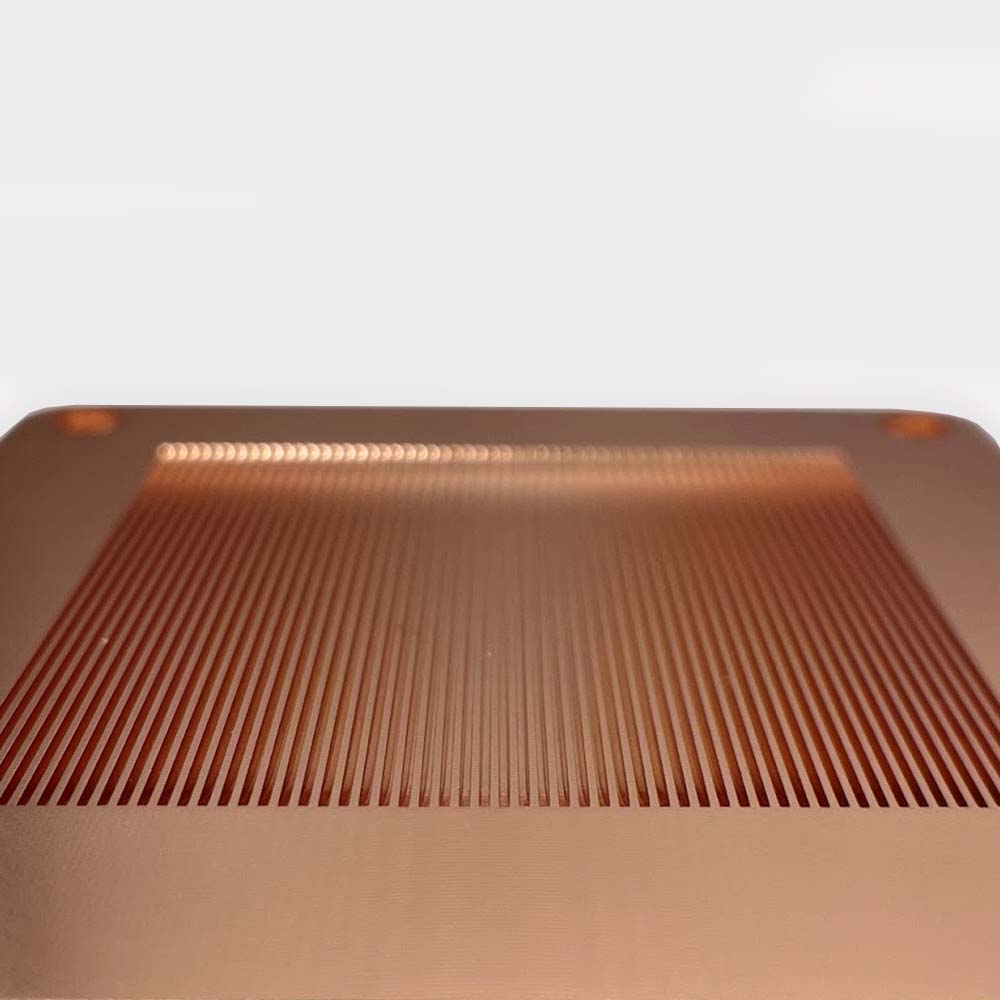

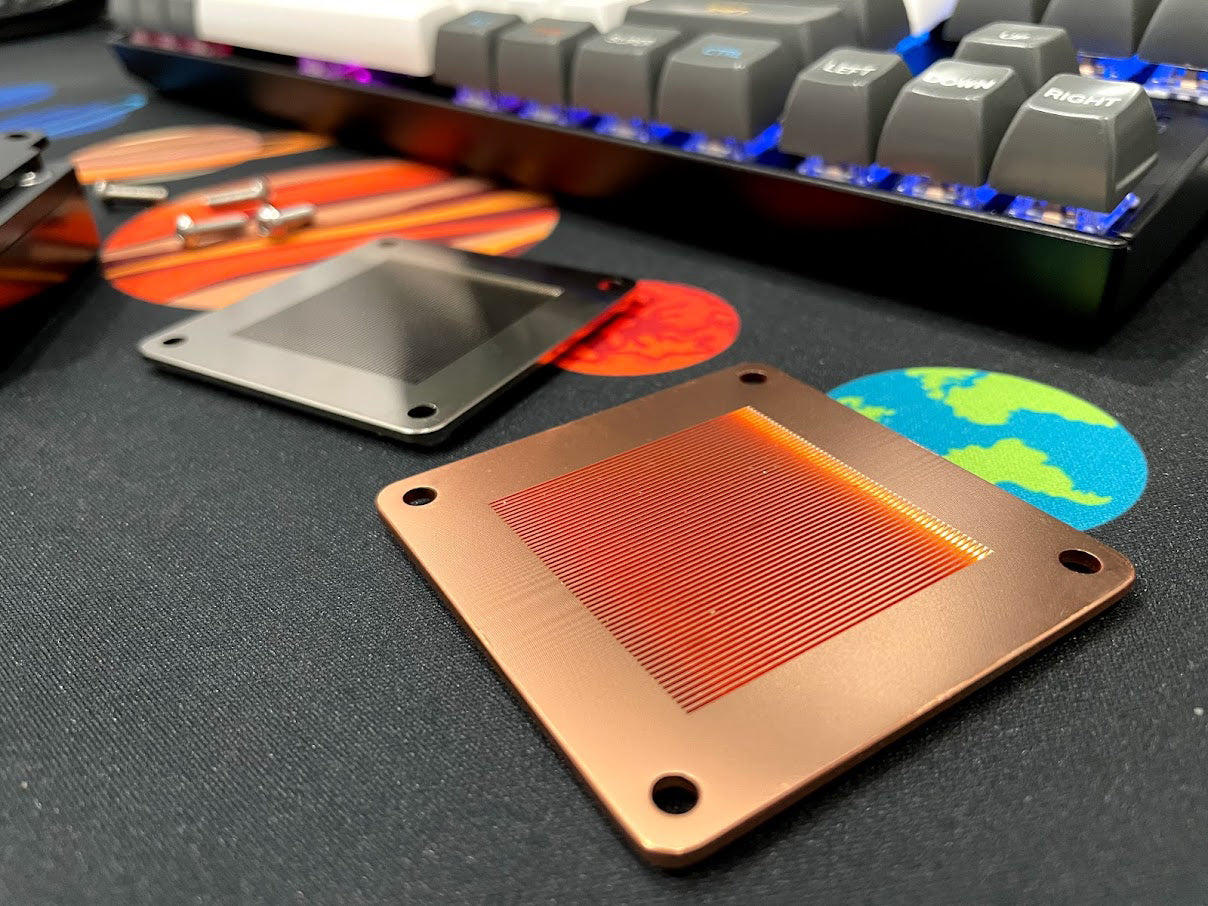

There are options for different CPU socket mounting including Intel 115X and AMD AM4 sockets. The package includes acrylic water block, accessories for mounting on to the motherboard, and cold plate with micro channel fins for guided water flow and better heat transfer. This product does not include a pump, giving users flexibility to mix & match pumps of their choice.
Fabio@SFF Forum: "This is a game-changer for SFF builds!"
TECH SPECS
CPU socket support :
Intel 115X / AMD AM4
Pump Type support :
DDC (Laing compatible)

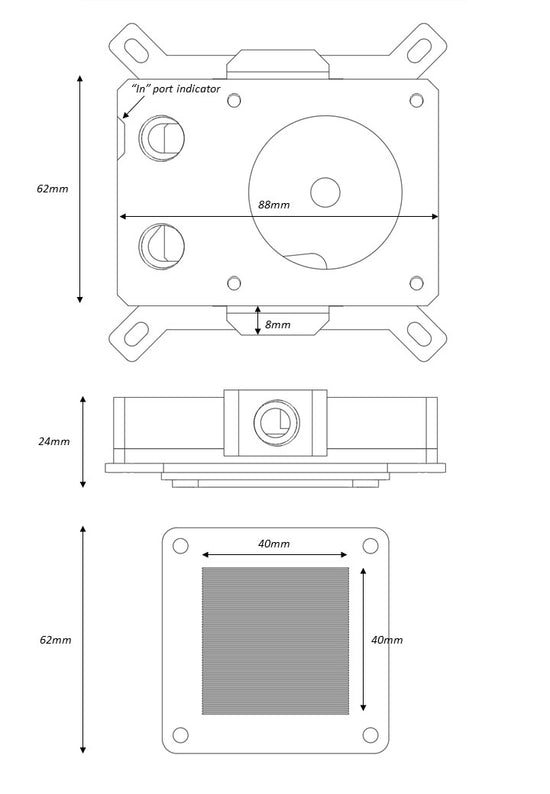

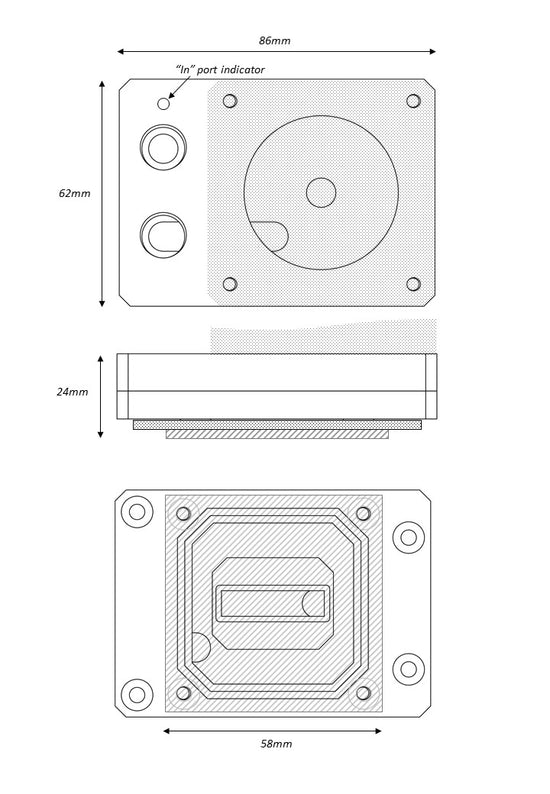

Dimensions :
86(L) x 62(W) x 24(H)mm (exc. pump)
Material :
- CNC'ed PMMA acrylic (water block)
- nickel plated copper (cold plate)
Others :
- jet plate (optional to use)
- not included : hex key, pump
Note :
motherboard heatsinks may interfere with mounting bracket. Buyer should check for compatibility before purchase
Gallery
INSTALLATION
Find out more in our knowledge base section
Download the installation manual here
Preparation Notes:
- - Clean all parts before assembly
- - Pump - not included (DDC compatible)
Video Installation Guide
