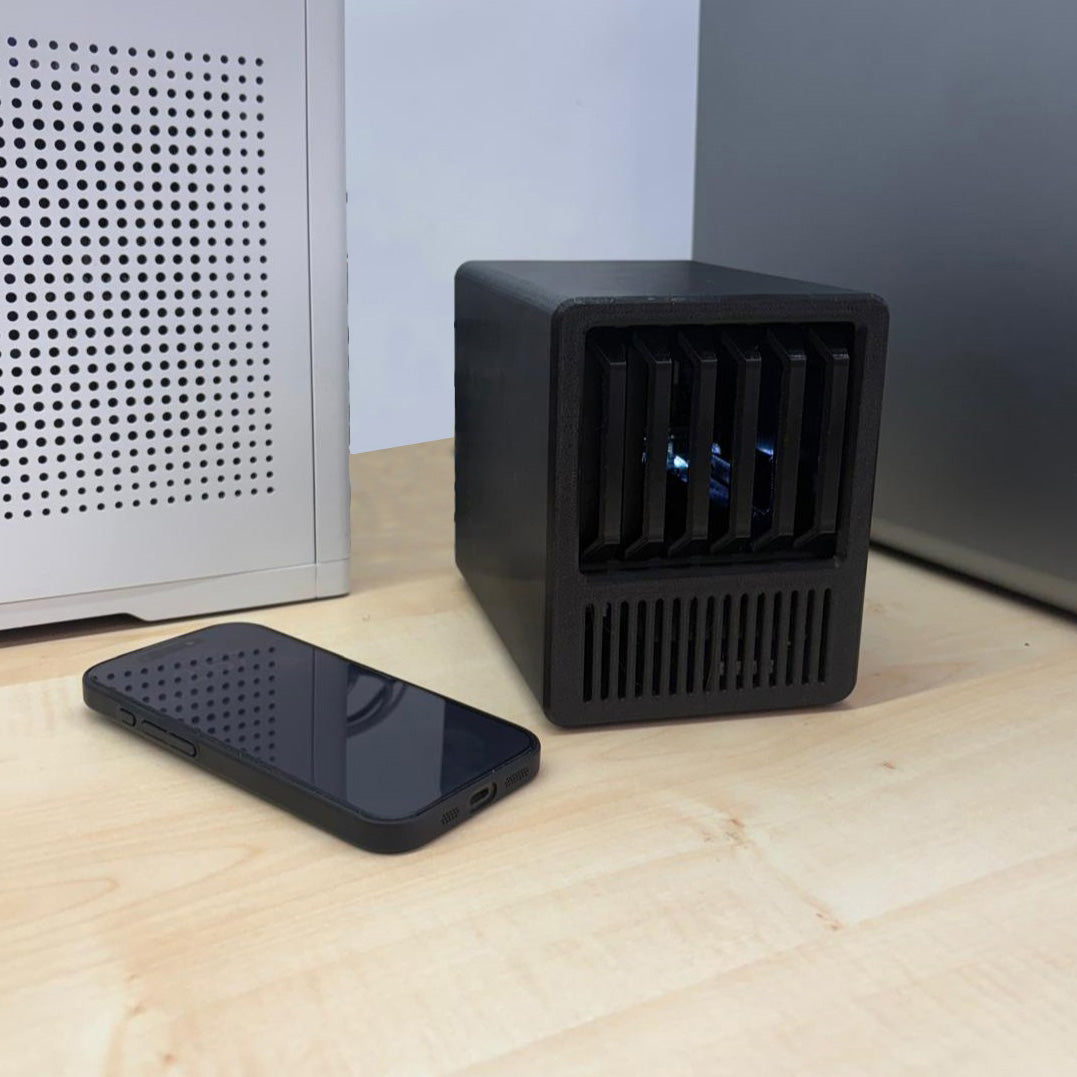

Qnasmini V2 - Mini Home NAS Server DIY Kit

Time to Prepare Order : Approx. 3-4 days

Easy to build DIY Kit of an ultra tiny form factor (167x145x114mm) home NAS server. Supports up to six 2.5" SATA hard disks (optimized for SSD).

Free 3D model files (STL) for 3D printing (PETG/ABS) available for download. Feel free to contact us for other custom parts/components.

DIY Kit Includes

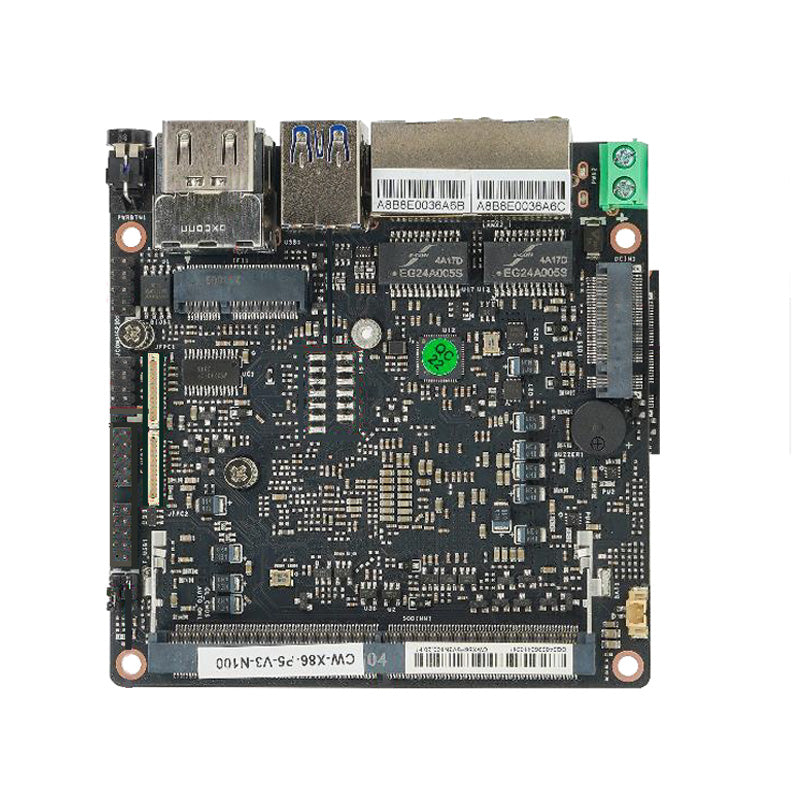

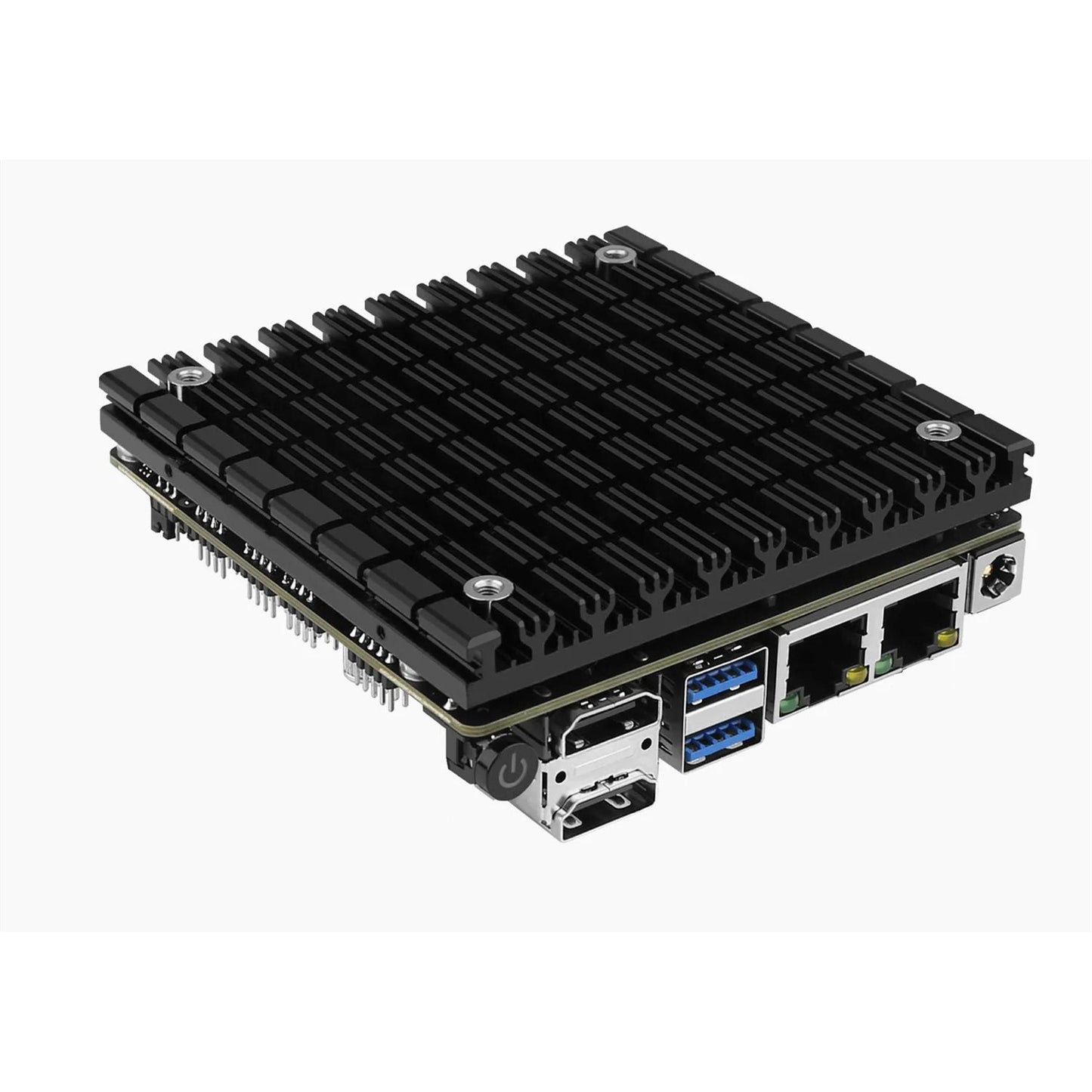

• Intel N-series mini server development board (X86-P5 V3)

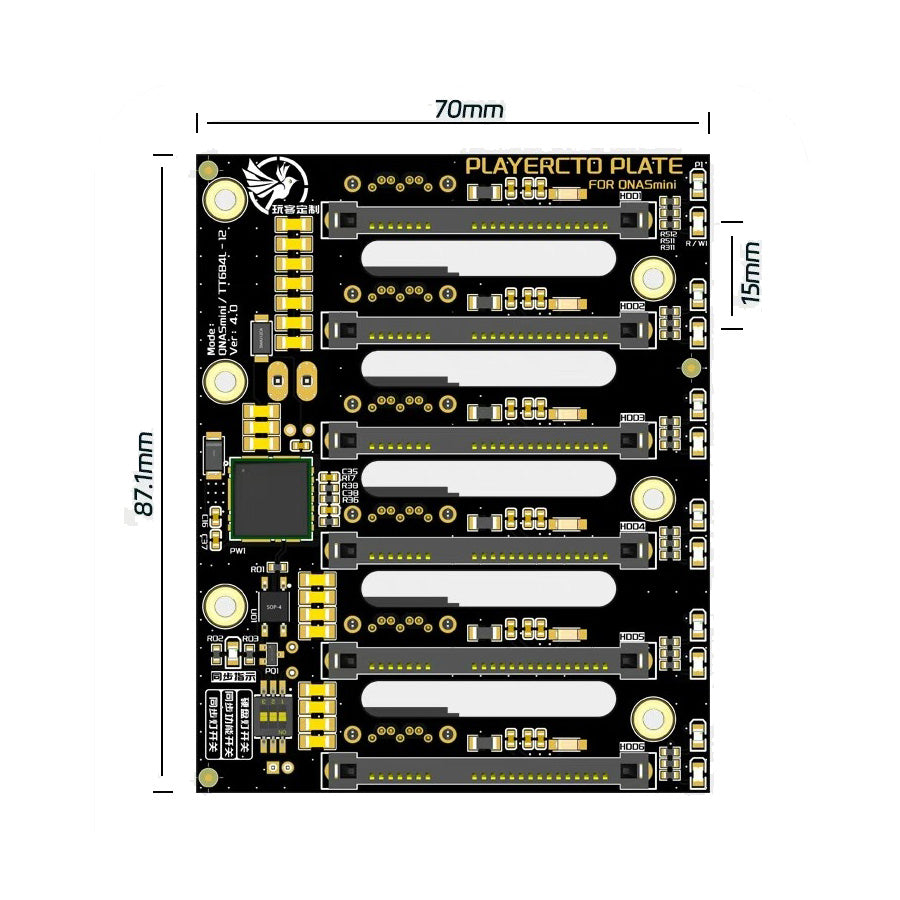

• Hot plug back plate supports up to 6x 2.5" HDD (<15mm height)

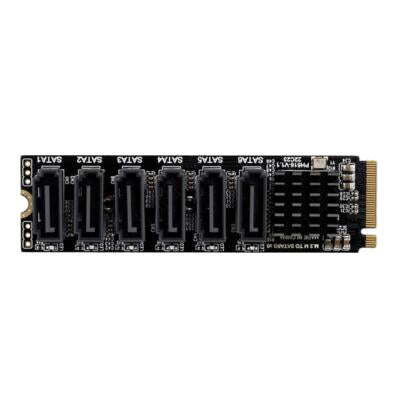

• NVMe to 6x SATA adapter (ASM1166)
• Cooling fans (1x 8010, 1x 5010 blower)
• 6x SATA cables (left-right angled, custom length)
• 1x FPC-SATA boot drive cable
• Screws, power y-splitter, Dupont jumper fan cables & rubber feet pack

• AC100-240~12V/6A, 72W power adapter
• RAM and storage drives NOT included
• 3D printed case NOT included (available here)
• BOM List

Software support

• NAS : TrueNAS, OpenMediaVault, Unraid, FnOS, etc.
• Virtualization : Proxmox, ESXi, VirtualBox, etc.

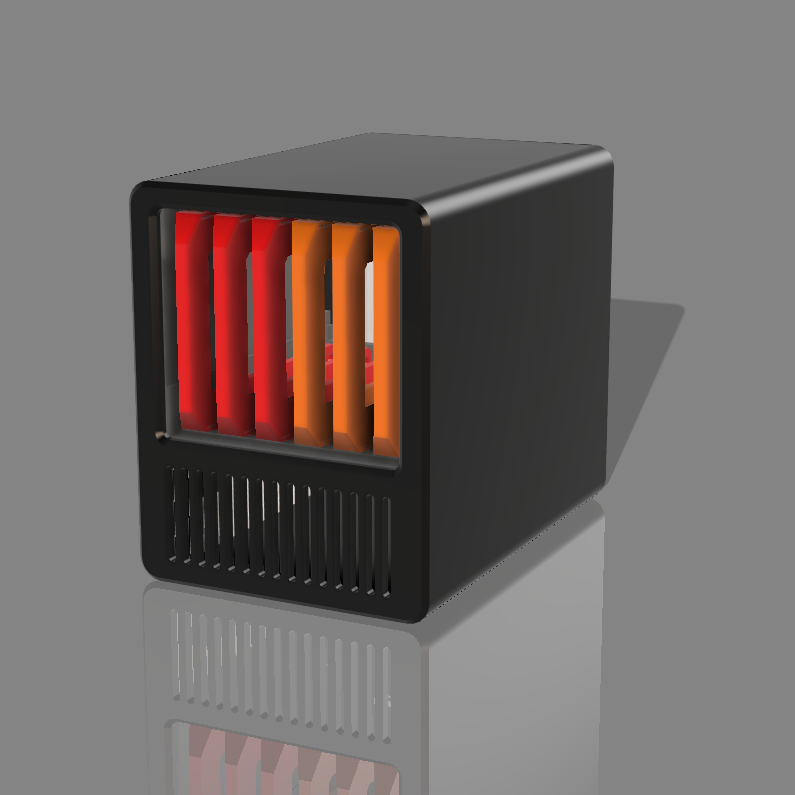

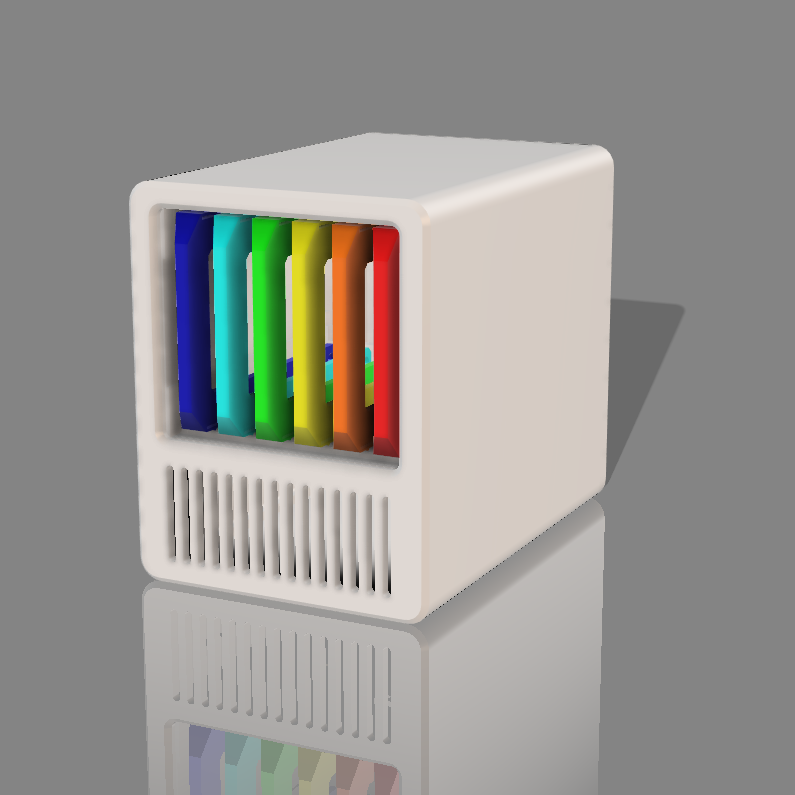

Qnasmini V2 3D Printed Case (Nouvolo Edition)

• Supports self-tapping screws - no threaded inserts required (Nouvolo Edition)
• Reduced 3D printing parts - combined HDD cage & inner shell (Nouvolo Edition)
• Slotted ventilation holes for faster printing and smaller files (Nouvolo Edition)Free 3D model files (STL) for 3D printing (PETG/ABS)
