TX AP (Almost Perfect) Stabilizers - Top Clip-in

Time to Prepare Order : Approx. 3-4 days

• Type : Secured onto the PCB via top clip-in
• Material : Double shot Stem / POM Outside / TPU & POM Inside
• Supports both 6.25U and 7U
• Pole Length (bottom out) : (Standard) 3.7~4mm, (Long) 3.2~3.6mm
• Long Pole : Best used with linear/tactile switches that have a longer stem (3.5mm travel) to ensure the stabilizer and switch bottom out at the same time, by limiting the total travel distance of the stabilizers.

Compatibility

• Type A Plate: This plate is widely used and the stabilizer can be used without any interference
• Type B Plate: This configuration may show up in the spacebar portion of the plate. If may have an interference on the latch part of the wedge (highlighted blue). This part should be cut. Two extra wedges are included.
• Type C Plate: Top clip-in stabilizers can only be used if the highlighted blue portion of the wedge is cut.
• Other: In the case where the stabilizer tab of the plate is cut at the same length of the switch cutout, method C can be used to fit the stabilizer.

Base Set includes:

• 10x Housings and Stems
• 4x 2U Wires
• 1x 6.25U Wire
• 1x 7U Wire

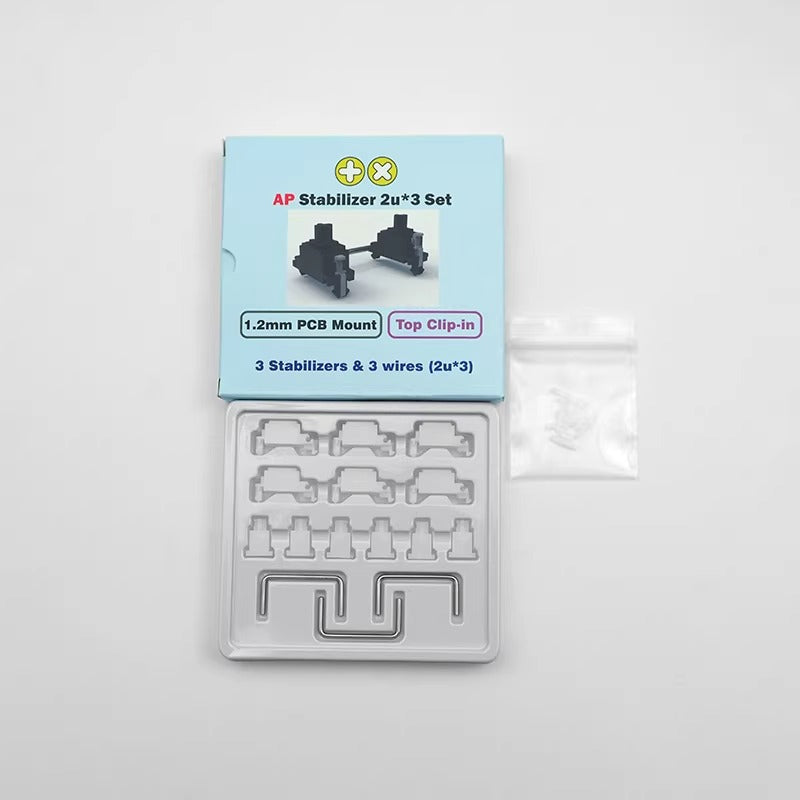

2U Set includes:

• 6x Housings and Stems
• 3x 2U Wires
